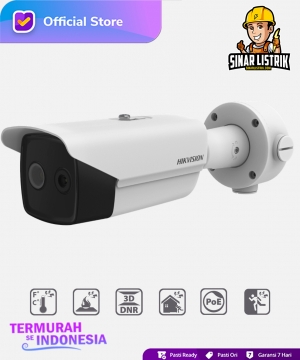

CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera

Stok: Habis
Berat:350 gram
Kondisi: Baru
Kategori: CCTV
Dilihat: 139 kali
Ulasan: Belum ada ulasan
CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera

*Pemesanan dapat langsung menghubungi kontak di bawah ini:

CCTV Hikvision Thermal Optical*Harga Hubungi CS
Habis
Tentukan pilihan yang tersedia!
Maaf, stock habis!
Produk ini tidak tersedia lagi (tidak dapat diorder).
Produk Terkait CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera

Deskripsi CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera

Bagikan informasi tentang CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera kepada teman atau kerabat Anda.

– CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera Modul termal sensitivitas tinggi dengan resolusi 160 x 120
– NETD kurang dari 40 mk (@25° C, F#=1.1)
– Mendukung penyesuaian kontras
– Teknologi pemrosesan gambar termal terkemuka: Adaptif AGC, DDE, 3D DNR
– Hingga 15 palet warna yang dapat disesuaikan
– CCTV Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera memilik fungsi analisis perilaku yang kuat, berdasarkan algoritma pembelajaran mendalam: Persimpangan garis, intrusi, pintu masuk wilayah & keluar
– Alarm anomali suhu yang andal
– Algoritma deteksi kebakaran canggih
– Modul optik berkualitas tinggi dengan resolusi 2 MP
– Perpaduan gambar bi-spektrum, pratinjau gambar dalam gambar

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17μm
  • Response Waveband8μm to 14μm
  • NETDless than 40 mk (0.04°C), F#=1.1
  • MRAD5.48 mrad
  • Field Of View50° × 37.2° (H × V)
  • Min. Focusing Distance0.2 m
  • ApertureF1.1



  • Optical Module
  • Max. Resolution1920 × 1080
  • Image Sensor1/2.8” Progressive Scan CMOS
  • Min. IlluminationColor: 0.0025 Lux @(F1.6, AGC ON), B/W: 0.0012 Lux @(F1.6, AGC ON)
  • Field Of View87° × 46.2°(H × V)
  • WDR120 dB
  • Shutter Speed1s to 1/100,000s
  • Day & NightIR cut filter with auto switch



  • Image Function
  • Bi-Spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel
  • Picture In PictureCombines details of thermal and optical image PIP, overlay thermal image on optical image



  • Smart Function
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy±8 °C (14.4 °F)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.



  • Infrared
  • IR DistanceUp to 40 m
  • IR Intensity And AngleAutomatically adjusted



  • Network
  • Main StreamVisible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720),Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720),Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
  • Sub StreamVisible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
  • Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
  • Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live ViewUp to 20
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering



  • Integration
  • Alarm Input2-ch inputs (0-5V DC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
  • Audio OutputLinear Level; Impedance: 600Ω
  • Reset1 Reset Button
  • Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
  • SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256 G), support manual/alarm recording
  • Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
  • ClientiVMS-4200
  • Web BrowserIE8-IE11, chrome41-chrome44, Firefox 30-Firefox51



  • General
  • Menu LanguageEnglish
  • Power12 VDC± 20%,PoE (802.3at, class 4)
  • Power Consumption12 VDC± 20%: max. 12W,PoE (802.3at, class 4)
  • Work Temperature/Humidity-40 °C to 60 °C (-40 °F to 140 °F), 90% or less
  • Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
  • Dimensions352.4 mm × 113.5 mm × 114.7 mm (13.9 ” × 4.5″ × 4.5 “)
  • WeightApprox. 1.5Kg (3.3lb)
