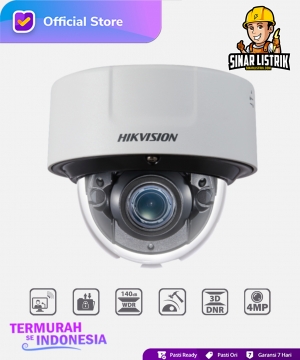

CCTV Hikvision 4MP Indoor Dome Camera

– CCTV Hikvision 4MP Indoor Dome Camera memliki gambar berkualitas tinggi dengan resolusi lensa camera 2 MP
– Kinerja rendah cahaya yang sangat baik dengan teknologi DarkFighter
– gambar yang jelas terhadap cahaya belakang yang kuat berkat teknologi LightFighter
– Fungsi cerdas berdasarkan pembelajaran mendalam
– CCTV Hikvision 4MP Indoor Dome Camera memiliki teknologi kompresi H.265+ yang efisien untuk menghemat bandwidth dan penyimpanan
– Teknologi streaming canggih memungkinkan kelancaran live view dan koreksi diri data di jaringan yang buruk
– 5 streaming dan hingga 5 streaming khusus untuk memenuhi berbagai aplikasi
– 6 analisis perilaku, 3 deteksi pengecualian, dan deteksi wajah Bukti perusak (IK10).

• Camera
• Image Sensor1/1.8ʺ Progressive Scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• WDR140 dB
• Day & NightIR Cut Filter.

• Lens
• Aperture2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range
• FocusAuto, semi-auto, manual
• FOV2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45° 8 to 32 mm, horizontal FOV 37.7° to 15.2°, vertical FOV 21° to 8.6°, diagonal FOV 43.3° to 17.24°
• Lens MountIntegrated
• Lens TypeMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional

• Illuminator
• IR RangeUp to 30 m
• Wavelength850 nm

• Video
• Max. Resolution2560 × 1440
• Video Stream5 defined streams and up to 5 custom stream
• Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) ,60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 16 Mbps
• H.264+Main stream support
• H.265+Main stream support
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Smart Feature-Set
• Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Face CaptureFace detection performance: detects up to 30 faces at the same time ,Detectable face position: supports swing left and right from -65° to 65°,tilt up and down from -45° to 45°
• Region Of InterestMain stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream
• StatisticsCounting
• Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.
• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

• Image
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Target CroppingYes
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

• Network
• Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Smooth StreamingYes
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+

• Interface
• Communication Interface1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
• Alarm1 input, 1 output (max. 24 VDC/VAC, 1A)
• Power Output12 VDC, max. 200 mA
• Interface StyleSocket style interface
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
• Video Out1Vp-p composite output (75 Ω/CVBS), only for adjustment
• Firmware Version5.5.90
• Web Client Language32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• General
• General CCTV Hikvision 4MP Indoor Dome Camera Function Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• ResetReset via reset button on camera body, web browser and client software
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af, class 3)
• MaterialMetal
• DimensionsCamera: Φ140.5 × 122.6 mm (Φ5.5″ × 4.8″) ,With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
• WeightCamera: approx. 950 g (2.09 lb.) ,With Package: approx. 1300 g (2.87 lb.)
• Power Consumption And CurrentWith extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ,Without extra load: 12 VDC, 0.6 A, max. 8.0 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ,”with extra load” means that an extra device is connected to and powered by the camera.
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

• Approval
• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
• Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• ProtectionIngress protection: IK10 (IEC 62262:2002)
